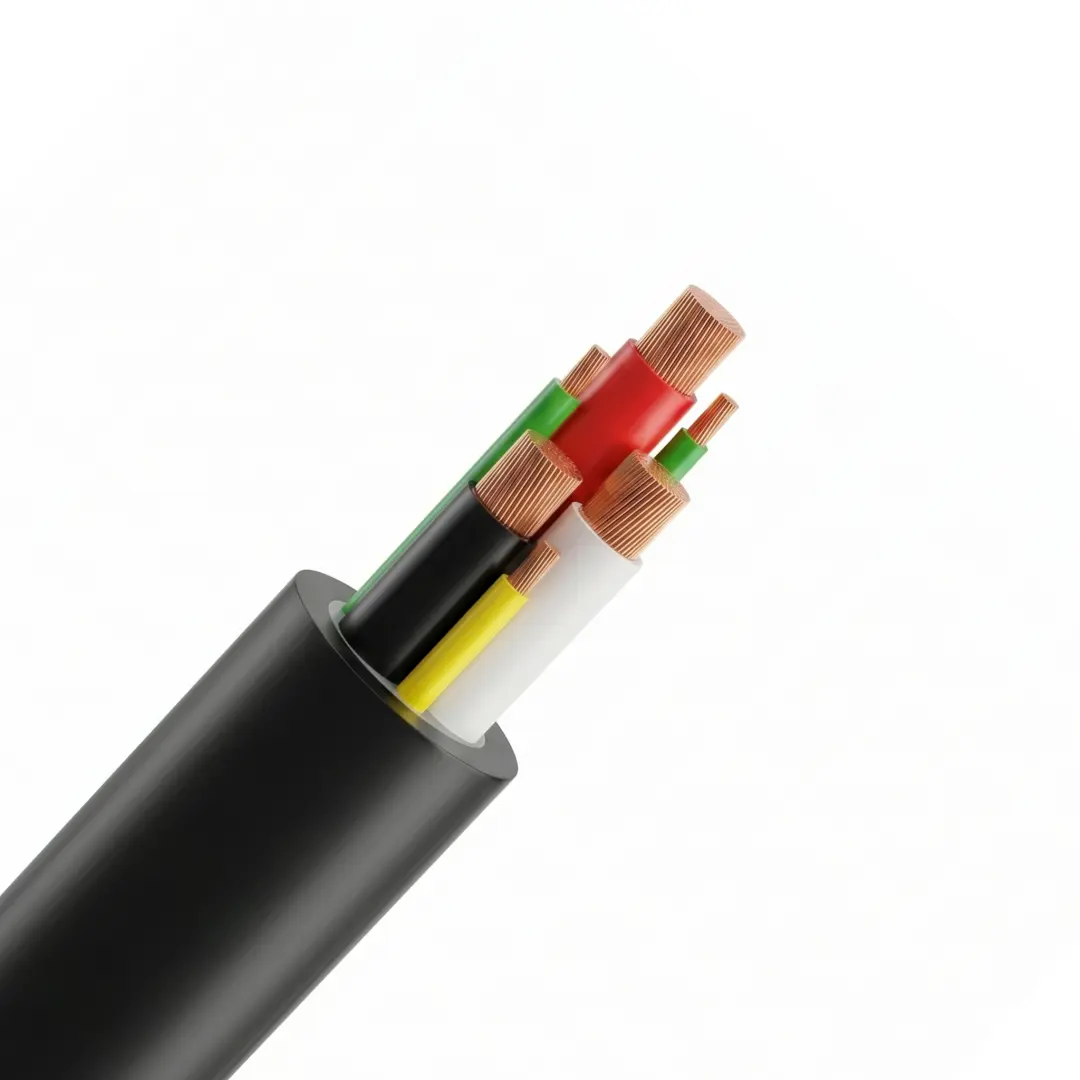

Type G-GC Mining Cable (Portable Power with Ground Check, 2000V)
Farwalk’s Type G-GC Mining Cables are the high-performance portable power link for heavy mining and industrial equipment. Engineered with flexible tinned copper and a specialized Ground Check (GC) monitoring conductor, these 2000V cables provide maximum electrical safety by ensuring fail-safe ground continuity while withstanding the constant movement and mechanical abuse of the mine floor.
Manufactured in accordance with ICEA S-75-381 / NEMA WC 58 and UL standards. The core features flexible Class 5 or 6 tinned copper conductors insulated with premium Ethylene Propylene Rubber (EPR). The assembly includes two grounded conductors and one insulated Ground Check pilot wire, all encased in a heavy-duty reinforced Chlorinated Polyethylene (CPE) jacket.
The primary choice for portable mining equipment, pumps, shuttles, and conveyor systems requiring grounding monitoring. Ideally suited for environments where cable flexibility and personnel safety from ground faults are the top operational priorities.
• Voltage Rating: 2000V (2kV)
• Core Construction: 3 Conductors + 2 Grounds + 1 Ground Check
• Insulation: 90°C EPR (Extra Heavy Duty)
• Jacket Material: Reinforced CPE (Oil, Flame & Water Resistant)
• Compliance: MSHA, ICEA, ASTM
• Temp. Range: -40°C to +90°C
1. Conductor: Fine-stranded flexible tinned copper, Class 5 or Class 6 per IEC 60228.
2. Insulation: Heavy-duty Ethylene Propylene Rubber (EPR).
3. Grounding (GC): One insulated Ground Check (GC) conductor for real-time monitoring.
4. Grounding (G): Two flexible bare or tinned copper grounding conductors in the interstice.
5. Reinforcement: Open polyester braid for increased mechanical and torsional strength.
6. Outer Jacket: Reinforced double-pass Chlorinated Polyethylene (CPE) or Neoprene compound.
• Fail-Safe Ground Monitoring: Integrated GC pilot wire enables specialized protective relays to monitor grounding continuity, instantly tripping power if the circuit is broken.
• Extreme Flexibility & Toughness: Engineered with flexible Class 5/6 conductors and a high-tensile rubber jacket to endure constant dragging, twisting, and reeling on mine floors.
• Chemical & Environmental Defiance: The vulcanized CPE jacket provides total immunity to hydraulic oils, mine-water acids, ozone, and flame propagation.
• MSHA Certified Performance: Our G-GC mining cables are manufactured to meet or exceed the flame and safety requirements of MSHA and global mining standards.
• Vulcanized Integrity: Utilizing high-pressure continuous vulcanization (CV) ensures a dense, perfectly bonded jacket that prevents internal core-slippage during reeling.
• Rigorous Testing: 100% of finished reels undergo high-voltage withstand and continuity checks, providing a zero-failure power link for critical mining equipment.
Comparison Logic
| Feature | Type G-GC (Farwalk) | Type W Cable | Standard SOOW Cable |
| Ground Check | Integrated (Pilot Wire) | None | None |
| Safety Interlock | Yes (Real-time monitoring) | No | No |
| Voltage Rating | 2000V DC/AC | 2000V | 600V Max |
| Abrasion Resistance | Extreme (Mining Grade) | High | Moderate |
