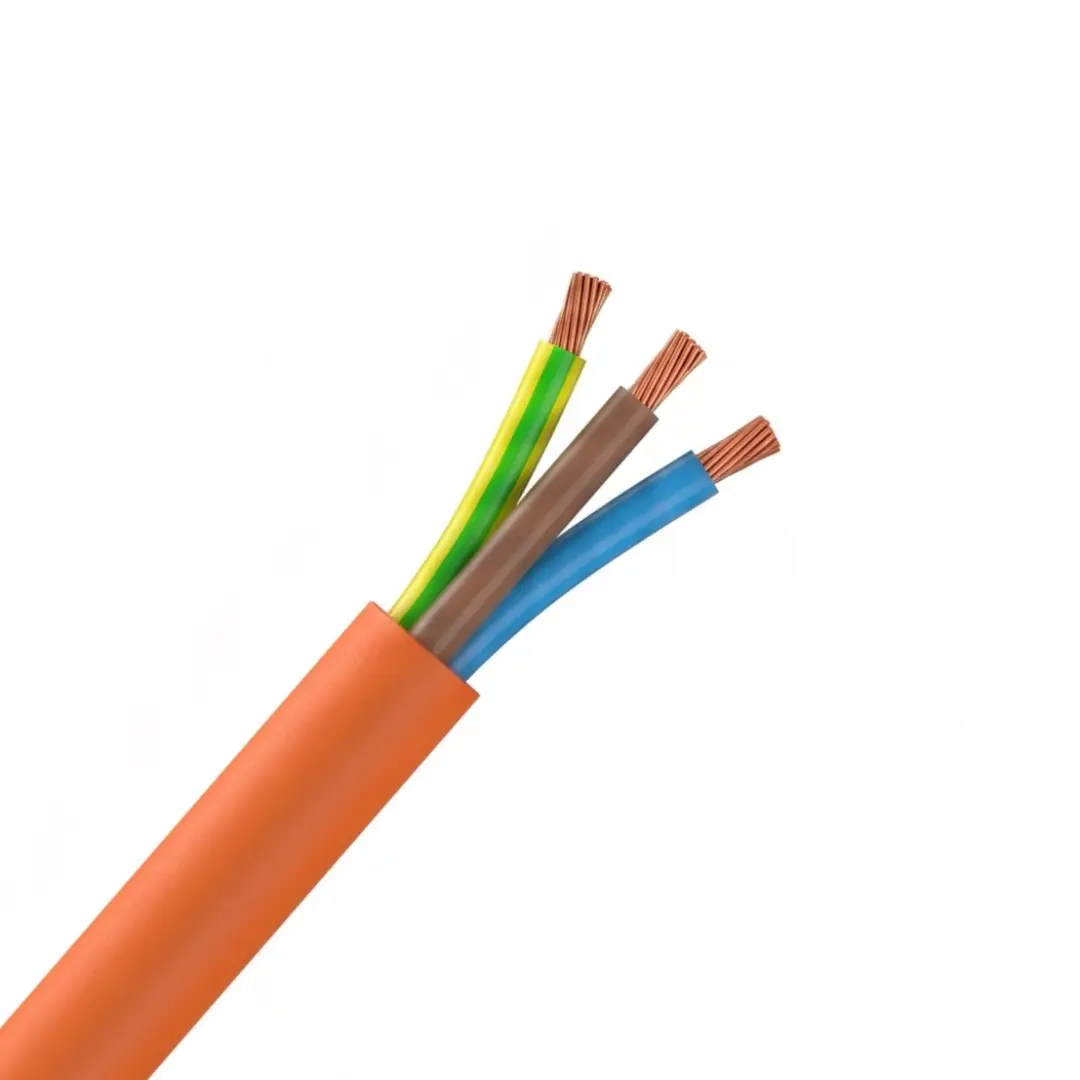

Flexible Rubber Cable
Farwalk’s Flexible Rubber Cables are the ultimate solution for heavy-duty power on the move. Engineered with a rugged synthetic rubber sheath and high-density EPR insulation, these cables are designed to withstand extreme mechanical stress, chemical exposure, and constant bending in the world’s harshest industrial environments.
Manufactured to EN 50525-2-21 and IEC 60245-4 standards. The core features Class 5 fine-stranded annealed copper for maximum flexibility. The insulation is premium Ethylene Propylene Rubber (EPR), and the outer jacket is heavy-duty Neoprene (Polychloroprene) or equivalent elastomer, providing excellent resistance to oils, UV radiation, and abrasion.
The primary choice for mobile machinery, construction site distribution, stage lighting systems, and generators. Highly recommended for cranes, hoists, handling equipment, and portable industrial tools where a durable, flexible power link is mandatory for safety and longevity.
• Voltage Rating: 450/750V (H07) or 300/500V (H05)
• Conductor: Class 5 Flexible Annealed Copper
• Insulation: EPR Rubber (EI4)
• Sheath: Neoprene / Polychloroprene (EM2)
• Temp. Range: -25°C to +60°C (Flexing) / +90°C (Fixed)
• Standards: EN 50525, IEC 60245, VDE 0282
1. Conductor: Fine-stranded flexible plain or tinned annealed copper, Class 5 or Class 6 per IEC 60228.
2. Insulation: Ethylene Propylene Rubber (EPR) or specialized synthetic rubber compounds (Type EI4/EI7).
3. Outer Sheath: Heavy-duty Polychloroprene (Neoprene), CPE, or Nitrile rubber, engineered for mechanical resilience and oil resistance.
4. Core Identification: Distinct color-coding or numbered cores for high-density control configurations.
• High Dynamic Resilience: Engineered with rubber’s natural elastic memory, allowing the cable to be repeatedly crushed, twisted, and flexed without permanent jacket deformation.
• Superior Weathering: Naturally resistant to ozone, UV radiation, and extreme temperature fluctuations from -30°C up to +90°C.
• Industrial Chemical Resistance: The robust synthetic rubber sheath provides an impenetrable barrier against mineral oils, grease, and common industrial solvents.
• Advanced Polymer Blending: We utilize proprietary rubber formulations that maximize abrasion resistance while maintaining ultra-high flexibility for mobile power.
• Continuous Vulcanization Mastery: Our state-of-the-art CV lines ensure a uniform, high-density cure for the rubber jacket, eliminating weak points and air pockets.
• Multi-Market Ready: Available in harmonized European H07RN-F types and heavy-duty industrial variations suitable for global infrastructure and mining tenders.
Comparison Logic
| Feature | Farwalk Rubber Cable | Standard PVC Cable | Pur Cable (Polyurethane) |
| Elastic Memory | High (No permanent kink) | Low (Holds kinks) | High |
| Cold Performance | Excellent (Stays soft) | Poor (Becomes brittle) | Superior |
| Oil Resistance | Very High | Low | Ultimate |
| Abrasion Resistance | High (Industrial Grade) | Moderate | Extreme |
Global Engineering & Project Support
Our technical team is ready to discuss customized cable solutions, compliance documentation, and optimized supply chain strategies for your international projects.
